Configuring Nginx on RedHat Linux 7.9 for Oracle GoldenGate 21c

When installed, Oracle GoldenGat (Microservices) will set up “services” that require a port number for access.  For the first run of the Oracle GoldenGate Configuration Assistant (OGGCA), the assistant will create the ServiceManager (1 port) and the first deployment (5 ports).  That means six ports would need to be opened on a firewall to run a single Oracle GoldenGate (Microservices) deployment.  This only increases by five ports for each deployment built under a single ServiceManager.

To address this, an open-source solution called NGINX allows all the ports within the deployment to be consolidated to a single port.  The single port that can be used with NGINX is either 80 (HTTP) or 443 (HTTPS); which will enable Oracle GoldenGate (Microservices) to be used over a standard firewall port

Downloading Binaries

The NGINX binaries need to be downloaded regardless of where you install Oracle GoldenGate (Microservices).  For Oracle Enterprise Linux, I documented the process here.  When you start to expand the installation base for Microservices, the installation of NGINX becomes similar yet different.

To install NGINX on an RedHat Linux 7.2 , the following steps should be followed.

1.     SSH into the RedHat instance

$ ssh  <user>@<public-ip-address>

2.     Sudo to Root

$ sudo su –

3.     Install and Confirm installation

$ yum -y install nginx && yum list install nginx

After installing the NGINX the next thing that must be done is to configure it against the Oracle GoldenGate (Microservices) environment.

Configure NGINX

Oracle has made it easy for Oracle GoldenGate administrators to configure the NGINX interface after the installation.  They provided a script called “ReverseProxySettings” in the $OGG_HOME/lib/utl directory.  This script is used to build the Nginx configuration file based on the deployments running on the AWS EC2 node.

The steps to configure the reverse proxy are as follows:

1.     Change to the Reverse Proxy directory under $OGG_HOME

$ cd $OGG_HOME/lib/utl/reverseproxy

2.     Run ReverseProxySettings with options (unsecure access)

$ ./ReverseProxySettings -u oggadmin -P <password> -o ogg.conf http://localhost:<servicemanager_port>

3.     Copy the config file to the NGINX directory

$ sudo cp ogg.conf /etc/nginx/conf.d/nginx.conf

4.     Create a dummy cert

$ sudo sh /etc/ssl/certs/make-dummy-cert /etc/nginx/ogg.pem

5.     Start NGINX

$ sudo nginx &

6.     Test/validate NGINX config

$ sudo nginx -t

7.     Reload NGINX

$ sudo nginx -s reload

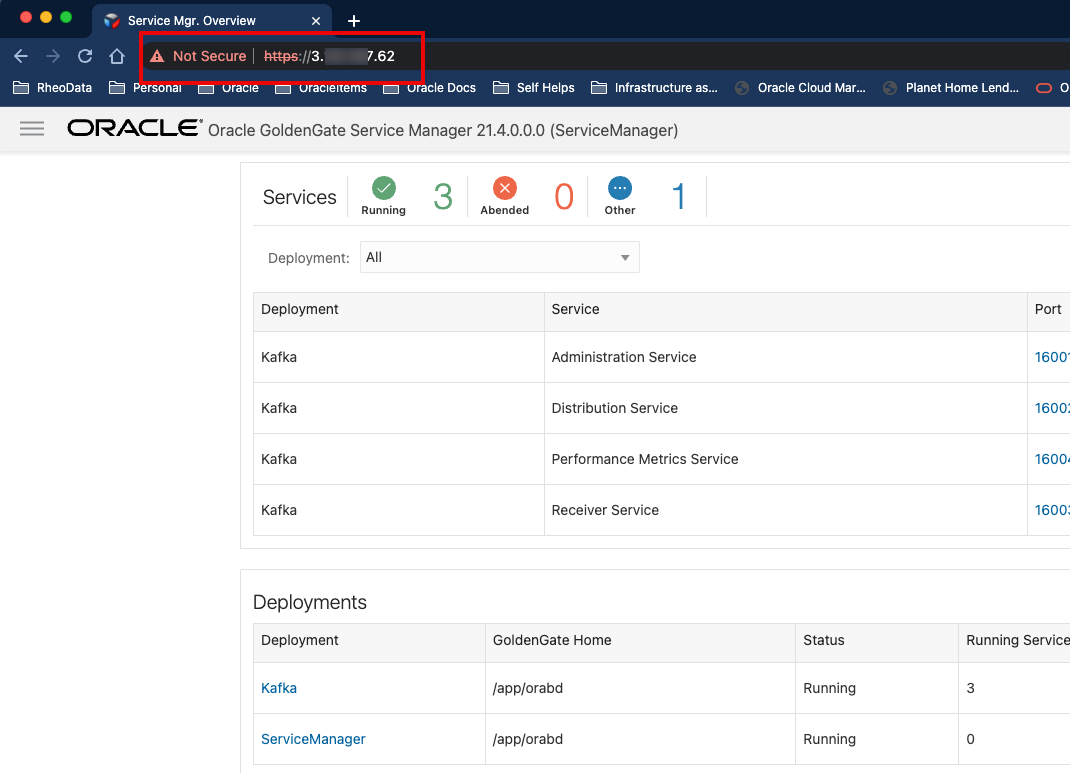

8.     Access the ServiceManager and other services without port numbers

Note: The ogg.pem must be downloaded and uploaded to your local cert wallet to access via a web browser.

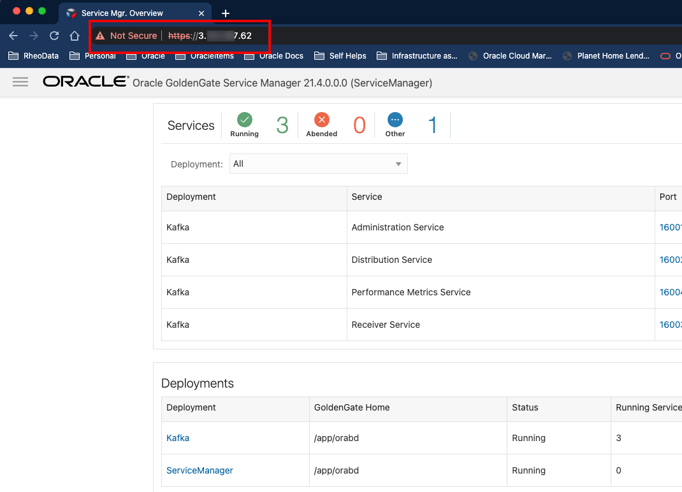

End Result

Once everything with the NGINX is configured, Oracle GoldenGate (Microservices) can be accessed by URL using the standard port of 80 (HTTP) or 443 (HTTPS).  This enables Oracle GoldenGate (Microservices) environments to be accessed over standard firewall rules.
